The Series 50 – AM spindles provide a heavy duty drive while giving you easy to work with configurations. Providing the ability of more strength and torque makes it for a valuable spindle. The Series 50 – AM spindles have a rugged ball bearing design that is used for the tough and hard to do jobs that need that extra support. The air motor is capable of 21,000 RPM or lower RPM’s with integral planetary gears. Uses stand-ard ER 20 collets. The capability of this spindle provides an integral piece of machinery for your tasks in hand.
ER 20 COLLET SYSTEM Capacity: 0.5 – 13MM. (0.019 – 0.5120 in.)
The Series 50 – BD spindles provide a heavy duty drive while giving you easy to work with configurations. Providing the ability of more strength and torque makes it for a valuable spindle. The Series 50 – BD spindles have a rugged ball bearing design that is used for the tough and hard to do jobs that need that extra support. Uses stand-ard ER 20 collets. The capability of this spindle provides an integral piece of machinery for your tasks in hand.
ER 20 COLLET SYSTEM Capacity: 0.5 – 13MM. (0.019 – 0.5120 in.)
The Series 50 Tool Changer provides the ability to interchange numerous drilling/milling tools for heavy duty applications. The tool changer’s large diameter shaft utilizes 3C style collets for high strength and maximum durability. For high speed applications the air motor can provide up to 21,000 RPM when properly equipped. The belt drive ver-sion has a 16mm diameter shaft protruding from the actuator. The precision of the Series 50 TC gives an overall ability to provide flexibility while deliv-ering more power, dependability and utmost re-sults.
3C COLLET SYSTEM Capacity: 0.5 – 12.8 mm. (0.019 – 0.500 in.)

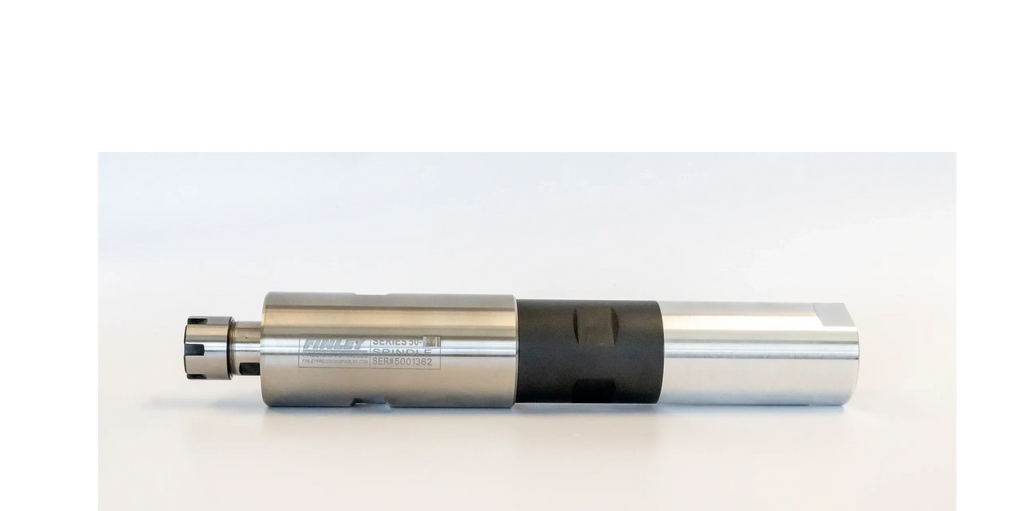

Series 50 Spindle with Air Motor - Motor Options Below

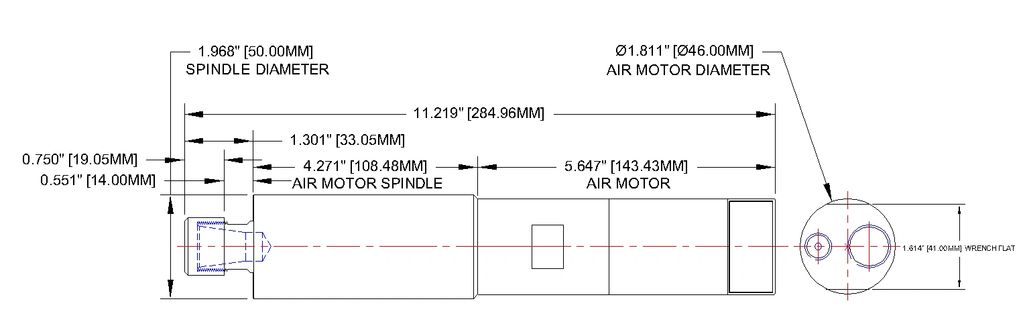

Dimensions for Series 50 Spindle with Air motor attached.
Maximum Collet Size: 13mm (.5120)
Series 50 Air Motor Performance Specifications

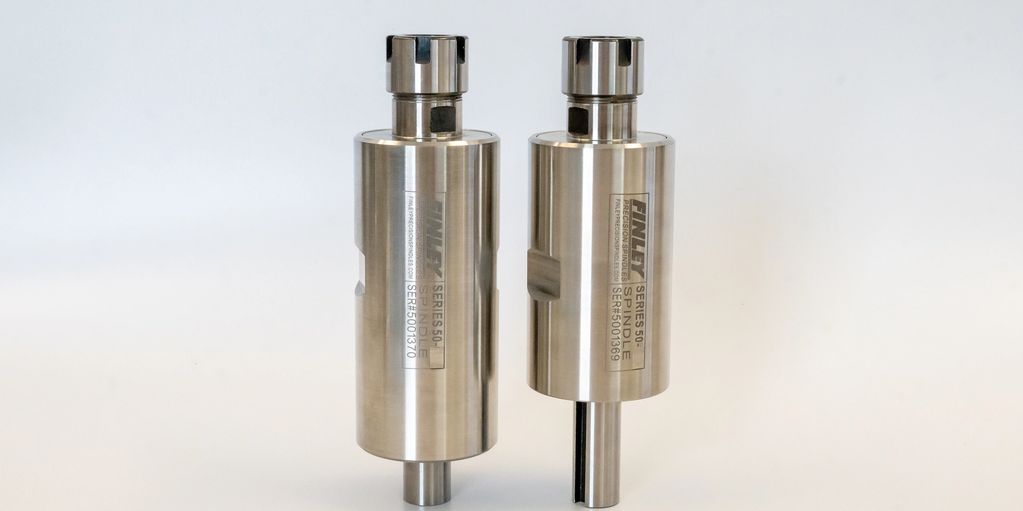

Series 50 Spindle - Belt or Servo Driven Shaft
Optional rear support bearing available

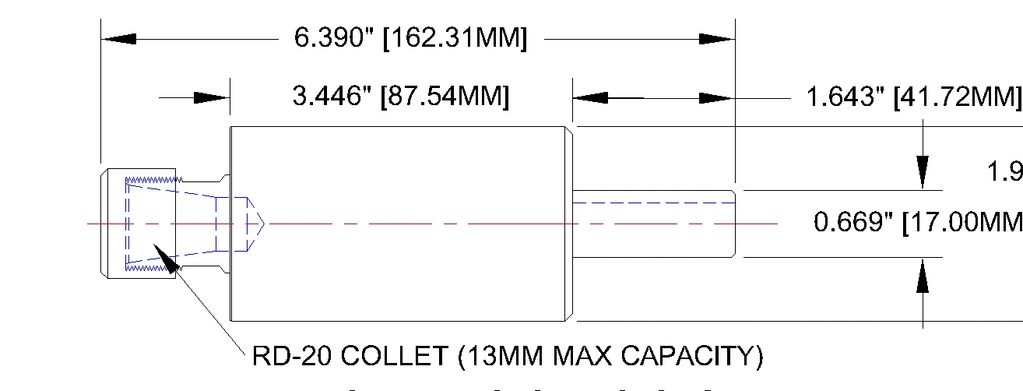

Dimensions for Series 50 Spindle - Short Housing
Maximum Collet Size: 13mm (.5120)

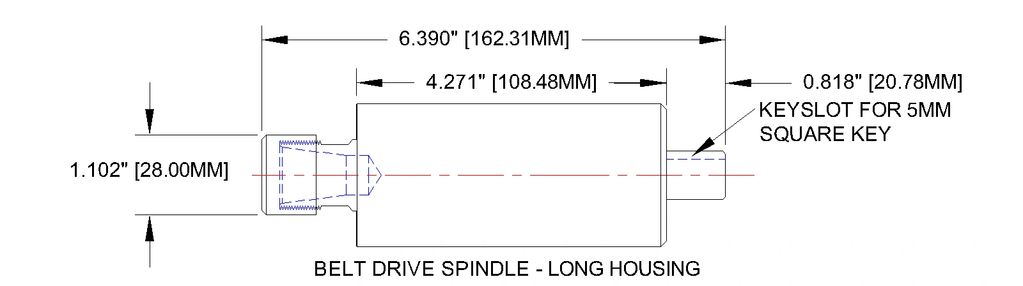

Dimensions for Series 50 Spindle - Long Housing
Maximum Collet Size: 13mm (.5120)
