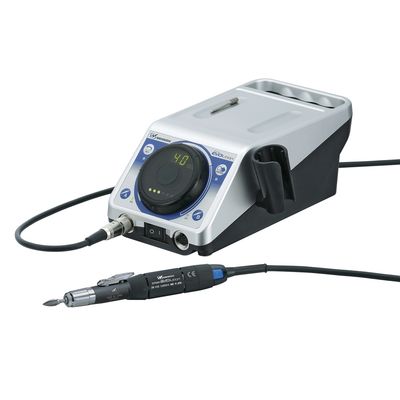

Emax Evolution
ULTRA-PRECISION BRUSHLESS MICRO-GRINDER
Electrically Driven 1,000~40,000 min-1 (rpm)
Modular Type Brushless Micro Grinder
- Digital display enhances safety and efficiency
- Compact and functional design makes the unit portable
- Soft touch switches permit easy operation and long service life
- NAKANISHI Smart Switch
- High performance samarium cobalt magnet
- High accuracy, lightweight, high reliability and superior durability
- Major reduction of RF noise
- Provides extremely quiet operation from low to high speed with stepless speed adjustment
- Ergonomic design reduces strain on user
- Many attachments available
- EV410-IH Standard Set
Capabilities for a wide variety of applications .
Excellent balance and motor power for smooth speed and handling.
Reducers available to boost torque
Speed: 1,000-40,000 min-1( rpm)
Weight (w/o Cord): 3.17 oz.
Max Torque: 4.3 cN·m
Output Power: 73W
- EV250-IR Torque Set
For heavy duty and larger tools, torque type extends to extend operation ranges
Speed: 1,000-25,000 rpm
Weight (w/o Cord): 5.19 oz.
Max Torque: 4.8 cN·m
Output Power: 76W

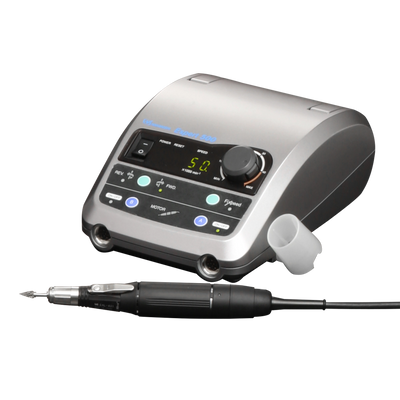

Espert 500
ULTRA-PRECISION BRUSHLESS MICRO-GRINDER
Electrically Driven 1,000~50,000 min-1 (rpm)
Ultra Precision Micro Grinder
The ESPERT 500 Brushless Motor takes motor technology to an even higher level. This new state of the art motor has dramatically increased efficiency and torque output. The microprocessor based control unit provides optimal control of the motors and allows for increased flexibility in this multi-function system.
- Realizes high output power of up to 200W and high durability through the combination of a high-performance brushless DC motor and high grade electronics
- High power system: max. output 140W
- Speed range: 1,000-50,000 min-1(rpm)
- Microprocessor controlled for optimal motor control
- Hand switch [NAKANISHI Smart Switch]
- Memory speed function [FiXpeed]
- Many attachments available
ES50C-HR Standard Set
High Power system
Microprocessor controlled for optimal motor control
Hand switch [NAKANISHI Smart Switch]
Memory speed function [FiXpeed]
Speed: 1,000-50,000 min-1( rpm)
Weight (w/o Cord): 7.41 oz.
Max Output Power: 140W
ES50T-HR Torque Set
For heavy duty and larger tools, torque type extends to extend operation ranges
Speed: 1,000~50,000 rpm
Weight (w/o Cord): 8.82 oz.
Output Power: 200W
Attachments for Hand polishers
Many more types available - please contact us for more information

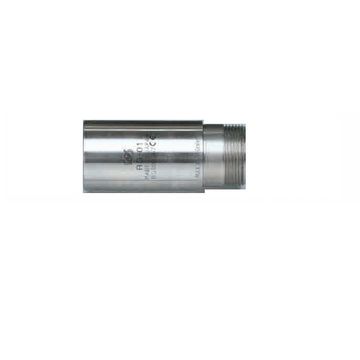

RG-01 & RG-02
Speed Reducer - EMAX
Speed is reduced to 1/4 or 1/15 but the torque is multipled by 4 or 15 times.
Also Available for ESPERT
FC-64
Foot Pedal
Used as an ON/OFF switch as well as a variable speed control (for EMAX)
IR-300
φ3.175 Ring Type Attachment
Perfectly designed for powerful and delicate cutting and grinding, and made slim and light weight for comfortable gripping
IH-300
φ3.175 Lever Type Attachment - EMAX or ROTUS
Perfectly designed for powerful and delicate cutting and grinding, and made slim and light weight for comfortable gripping
EHR-500
φ3.175 Ring Type Attachment - ESPERT
- Slim, lightweight design allows for fine finishing of delicate parts
- Ring Type one touch bur release
- Manufactured with micron level precision for high accuracy and high reliability
EHR-500
φ3.175 Lever Type Attachment - ESPERT
- To attain more powerful grinding and fine polishing finish, attachment EHL-401 is designed to make it lightweight and fit to pen-grip type holding
- Simple lever turning for bur exchange
- Same chuck as used in EHR-500
IG-400
φ3.175 Straight Type Attachment
Light weight ergonomically designed with minimal vibration for extended use
HG-200
φ6.35 Torque Type Attachment
The resistance produced by cutting and grinding is absorbed by a special rubber grip to eliminate slipping
IC-300
φ3.175 90°Angle Type Attachment
90° angle attachment with 3.175mm Collet.
Most suitable for polishing flat surfaces, corners and internal surfaces of pipes with paper disk mounted on rubber pad

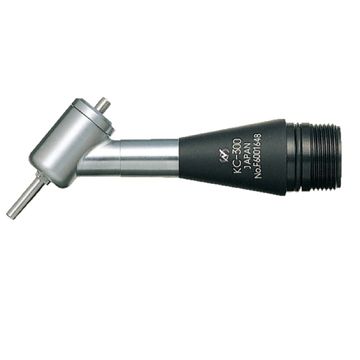

KC-300
φ3.175 50°Angle Type Attachment
Ideal for work at 45° angle, especially corners and deep concaves
NLS-110
Luster Attachment (Built-in Motor)
- High Power
- Reciprocating Stroke: 0~7,600 times/min
- Fully adjustable
- Designed with comfortable rubber-grip
- Stroke Range: 0~6 mm adjustable by stroke cam
- The tilt angle for grindstone arbor is adjustable
ML-9
Mini Luster Attachment
- Reciprocating Stroke (variable): Approx 0~9,000 times/min
- Stroke Range (fixed): 0.8 mm.
- Due to pencil type grip, it is most suitable for polishing narrow grooves, details, etc
- Lightweight, compact design and minimal vibration keep the hand free from fatigue for long continuous operation
- By using the grindstone holder provded, various tools such as oil stone, super stone, diamond files, etc can be used

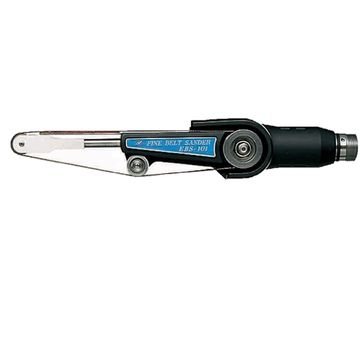

KBS-101
Fine Belt Sander Attachment
- Light-weight, compact, minimal vibration and a small diameter grip design keep the hand free from fatigue for long, continuous operation
- When polishing a curved surface, the tension between the front and central pulley can be utilized
- When polishing a flat surface or a groove, use the flat part of belt
