HES High Speed Machining SOlutions from NSK America
HES Series - Electric
BT/CAT/NT/HSK/R8, 50,000 / 80,000 Max RPM, 340W (0.45HP) Max Power
Upgrade your exsisting NC Milling machines and CNC machining centers to high speed machines
HES510
Ultra-precision, high-speed HES510 Spindles allow you to use your existing equipment for a much larger variety of operations. Conventional milling machines and machining centers can now do high-speed machining, small diameter drilling and milling with extremely good surface finishes with the HES510.
Features of HES510
- 5,000-50,000 min-1(rpm)
- Maximum output 340W (.45HP)
- Ceramic bearings
- Smooth rotation
- One-piece motor and spindle construction
- Emergency connector
- Excellent durability by air-cooling system
- Best for small diameter drilling and milling
- Cooling air
- Large variety of tapers available
- Protection circuit
Specifications
- Speed: 5,000-50,000 min-1(rpm)Max.
- Output Power: 340W (.45HP)
- Spindle Accuracy: Within 1 μm
- Standard Size Collet: (CHK-3.175)ø1/8

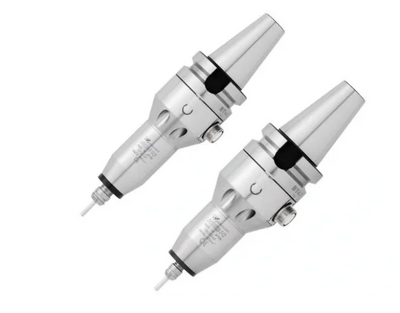

HES810
Ultra-precision, high-speed HES810 spindles allow you to use your existing equipment for a much larger variety of operations. Conventional milling machines and machining centers can now do high-speed machining, small diameter drilling and milling with extremely good surface finishes with the HES810.
Features of HES810
- 20,000-80,000 min-1(rpm)
- Maximum output 350W
- Ceramic bearings
- Smooth rotation
- One-piece motor and spindle construction
- Emergency connector
- Excellent durability by air-cooling system
- Best for small diameter drilling and milling
- Cooling air
- Large variety of tapers available
- Protection circuit
Specifications
- Speed: 20,000-80,000 min-1(rpm)Max.
- Output Power: 350W (.45HP)
- Spindle Accuracy: Within 1 μm
- Standard Size Collet: (CHA-3.175)ø1/8
Mount your HES to your Turret with our Rotary Coupling Cable managment system
