22.8 Belt Driven Spindle

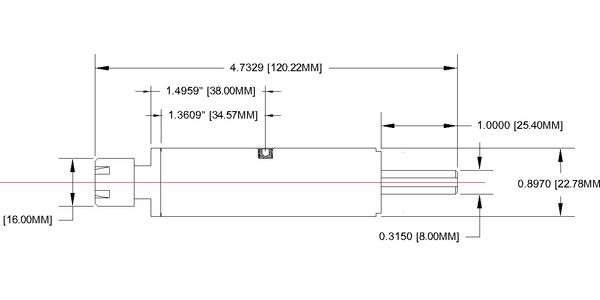

Ø 22.8 MM Belt Driven Cartridge Spindle
The Series 22.8 cartridge spindle is designed for high speed drilling, cutting, milling and grind-ing operations using standard ER – 11 collets. Its offers high precision in a subcompact size. It can be used in a wide variety of applications for those tough to reach areas.
ER 11 COLLET SYSTEM Capacity: 0.5 – 8 mm. (0.019 – 0.3125 in.)
Run-out Spec ± .0001
Optional Pulleys
- XL Tooth Pulley
- Belt Pulley: Flat or Round
