High Frequency Live-Tool Monitor System
Intelligent Monitoring for High Frequency Electric Spindles
The Futureswiss Smart Monitor system provides continuous, real-time monitoring of high-frequency electric spindles using data directly from the spindle controller—no external sensors required.
By analyzing spindle load throughout every machining cycle, the system detects tool wear, broken tools, and abnormal cutting conditions before they lead to scrap, downtime, or unexpected production interruptions. Operators receive immediate visual alerts, allowing worn tools to be replaced proactively and broken tools to be identified instantly.

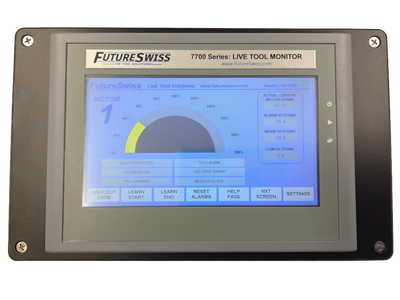

Available with your choice of a rugged 10-inch or 15-inch industrial touchscreen, the Live-Tool Monitor offers a powerful yet intuitive interface for monitoring spindle performance across your entire machine.
Monitor Through Your Spindle Controller
Unlike conventional tool monitoring systems that require external sensors or complex installation, the Futureswiss Live-Tool Monitor communicates directly with supported high-frequency spindle controllers to monitor tool performance.
This provides a clean, reliable installation while preserving the normal operation of the spindle controller.
- No external sensors required.
- No modifications to your spindle controller.
- Simply smarter monitoring.

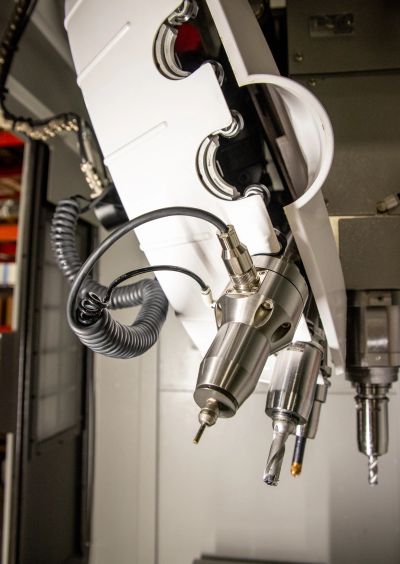

Built for Multi-Spindle Machines
Monitor up to four independent spindles from a single Live-Tool Monitor System.
Each spindle supports unlimited Smart Cuts, allowing even the most complex machining cycles to be monitored with confidence.
Whether running a single live tool or multiple high-frequency spindles simultaneously, the system provides continuous monitoring across every operation.
SMART CUTS
Every machining cycle is unique.

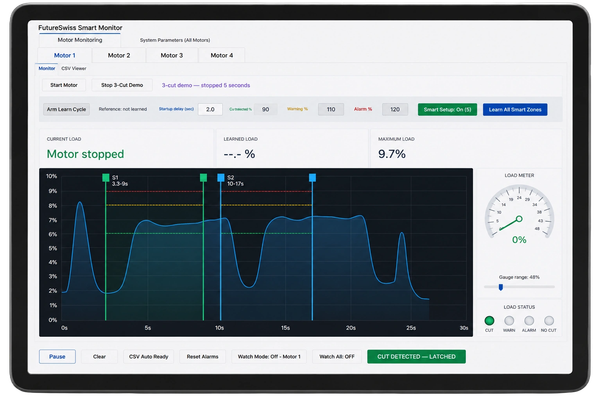

Smart Cuts independently monitors each cutting operation performed by a spindle instead of treating the entire machining cycle as a single event. Whether a spindle performs roughing, finishing, drilling, chamfering, or multiple operations within the same program, each cut is learned and evaluated independently.
By analyzing every cut separately, the system delivers greater monitoring accuracy, minimizes false alarms, and detects worn or broken tools sooner—giving operators confidence that every machining operation is performing as expected.
Instant Visual Status

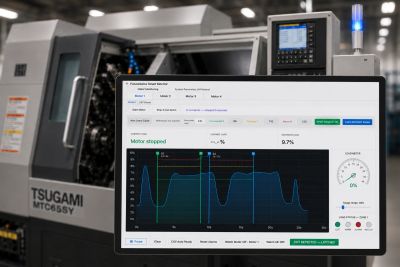

A rugged industrial tower light provides immediate machine status that can be seen from across the shop floor.
Green – Tool operating normally
Yellow – Tool wear has reached the user-defined warning threshold and should be scheduled for replacement.
Red – A broken tool or critical cutting fault has been detected. An output signal can be sent to the CNC machine to stop the machining cycle before additional parts are damaged.
Immediate visual feedback helps minimize downtime, reduce scrap, and eliminate unnecessary troubleshooting.
AUTOMATIC LEARNING

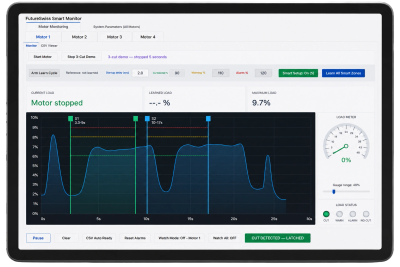

The Live-Tool Monitor automatically learns the normal cutting characteristics of each machining cycle during an initial Learn sequence. Once complete, it continuously compares every machining cycle against the learned profile to detect changes caused by tool wear, breakage, or abnormal cutting conditions.
When a new tool is installed, operators can quickly initiate a new Learn cycle and adjust warning thresholds to match tooling requirements, materials, or production tolerances.
Tool History & Production Data
Track tooling performance over time with built-in data logging.
Export tool history as standard CSV files to review cutting performance, analyze wear trends, and support preventative maintenance planning. Historical data provides valuable insight into tooling life, helping optimize replacement schedules and improve manufacturing consistency.
Precision Monitoring
Engineered for today's high-speed machining applications, the Futureswiss Live-Tool Monitor can monitor cutting tools as small as 0.006 inch (0.15 mm).
From micro drills to precision end mills, the system provides dependable monitoring for even the smallest tooling used in Swiss-type lathes and other high-precision CNC machining applications.
Key Features
- Monitors tool performance directly through the spindle controller
- No external sensors required
- Smart Cuts independently monitors every cutting operation
- Monitor up to four independent spindles
- Unlimited Smart Cuts per spindle
- Automatic Learn mode establishes baseline cutting profiles
- User-adjustable warning thresholds
- Detects worn tools, broken tools, and abnormal cutting conditions
- Choice of rugged 10-inch or 15-inch Windows 11 industrial touchscreen
- Industrial tower light provides instant machine status
- Dedicated Warning and Error outputs for CNC machine integration
- Setup mode disables outputs during machine setup
- Built-in Help screens for simplified operation
- Magnetic enclosure for fast, no-drill installation
- Plug-and-play wiring with included I/O jumper cable
- USB ports for firmware updates and future feature enhancements
- Export tool history as CSV files

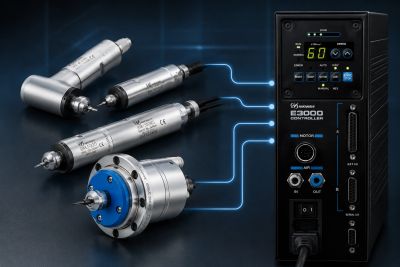

- Compatible with NSK iSpeed3, iSpeed5, HES, E2000, E3000 and E4000 spindle controllers

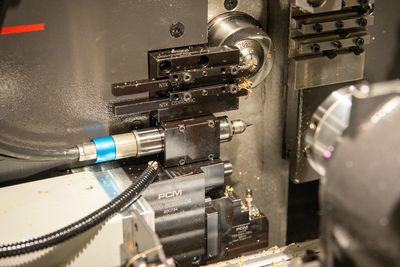

Applications
The High Frequency Live-Tool Monitor System is ideal for:
- Swiss-type CNC lathes
- Multi-axis turning centers
- Medical device manufacturing
- Aerospace machining
- Electronics manufacturing
- Precision micro-machining
- High-speed drilling applications
- Lights-out manufacturing
- High-volume production environments
Custom Solutions
Every manufacturing process is different. Futureswiss offers custom monitoring solutions tailored to your machine configuration, spindle controller, and production requirements. Our engineering team can work with you to develop a solution optimized for your specific application.
Expert Support
From installation and setup to application assistance and troubleshooting, the Futureswiss technical support team is committed to helping you maximize the performance of your Live-Tool Monitor System. Whether you need phone support, remote assistance, or on-site service, we're here to keep your production running.
Monitor More. Downtime Less.
The Futureswiss High Frequency Live-Tool Monitor System gives manufacturers greater visibility into spindle performance by detecting worn tools, broken tools, and abnormal cutting conditions before they become costly production problems.
With intelligent monitoring through your spindle controller, Smart Cuts technology, and support for tools as small as 0.006 inch, the Live-Tool Monitor helps reduce downtime, prevent scrap, improve process reliability, and maximize productivity—without external sensors or complicated installation.
